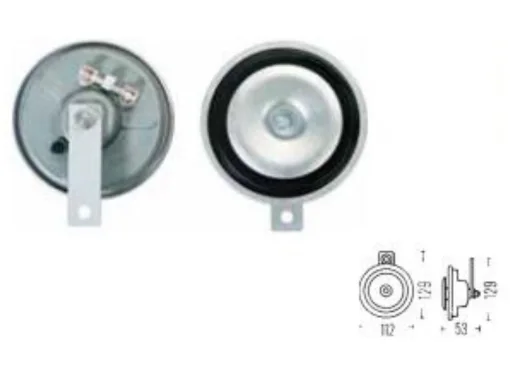

Disc-Type Horns – M 26
- Galvanized metal body
- Black diaphragm
- Sound pressure level (2 m away): 115 dB(A)
- Power consumption: 66 W per horn
- Bracket on horn for M8 fixing screw
- With 6.3 mm blade terminal contacts, open
- Without Teflon seal to protect against damp
| Part No. | Pk. | Description |
|---|---|---|
| 3AM 002 952-891 | 1 | Disc-type horn set, 12V, 335/400 Hz (2 disc-type horns) |
| 3AL 002 952-811 | 1 | Disc-type horn, 12V, 400 Hz |
| 3AL 002 952-817 | 40 | Disc-type horn, 12V, 400 Hz |
| 3AL 002 952-861 | 1 | Disc-type horn, 12V, 335 Hz |
| 3AL 002 952-867 | 40 | Disc-type horn, 12V, 335 Hz |
Disc-Type Horns – M 26 (Yellow Protective Grille)
- Black finish metal body and diaphragm
- Yellow protective grille
- Sound pressure level (2 m away): 115 dB(A)
- Power consumption: 84 W
- Bracket on horn for M8 fixing screw
- With 6.3 mm blade terminal contacts, open
| Part No. | Pk. | Description |
|---|---|---|
| 3BB 922 000-731 | 1 | Disc-type horn set, 12V, 350/415 Hz (2 disc-type horns) |
Disc-Type Horns – S 70
- Black finish metal body, diaphragm, and bracket
- Sound pressure level (2 m away): 112 dB(A)
- Power consumption: 30 W
- Bracket on horn for M8 fixing screw
- With 6.3 mm blade terminal contacts, open
- Without Teflon seal to protect against damp
| Part No. | Pk. | Description |
|---|---|---|
| 3AL 922 196-011 | 1 | Disc-type horn, 12V, 420 Hz |
| 3AL 922 195-021 | 1 | Disc-type horn, 12V, 340 Hz |
Disc-Type Horns – S 90
- Black finish metal body, diaphragm, and bracket
- Sound pressure level (2 m away): 113 dB(A)
- Power consumption: 42 W
- Bracket on horn for M8 fixing screw
- With 6.3 mm blade terminal contacts, open
- Teflon seal protects against damp
| Part No. | Pk. | Description |
|---|---|---|
| 3AL 922 200-431 | 1 | Disc-type horn, 12V, 350 Hz |
| 3AL 922 200-161 | 1 | Disc-type horn, 12V, 415 Hz |
Disc-Type Horns – B 36
- Galvanized metal body
- Black diaphragm
- Sound pressure level (2 m away): 116 dB(A)
- Power consumption: 72 W per horn
- Bracket on horn for M8 fixing screw
- With 6.3 mm blade terminal contacts, open
- Without Teflon seal to protect against damp
| Part No. | Pk. | Description |
|---|---|---|
| 3BB 002 768-661 | 1 | Disc-type horn set, 12V, 335/400 Hz |
| 3BA 002 768-082 | 1 | Disc-type horn, 12V, 335 Hz |
| 3BA 002 768-551 | 1 | Disc-type horn, 12V, 400 Hz |
Supertone Horns – B 133
- For high-priority vehicles
- Sound pressure level (3.5 m away): 110 dB(A)
- DIN 14 610 / CH 2098 compliant
- Black metal body and protective grille
- Bracket on horn for M10 fixing screw
- Protected 6.3 mm blade terminal contacts
- Teflon seal protects against damp
- Anti-interference capacitor
| Part No. | Pk. | Description |
|---|---|---|
| 3AG 003 399-081 | 1 | Supertone horn set, 12V, 375/500 Hz |
| 3AG 003 399-101 | 1 | Supertone horn set, 24V, 375/500 Hz |

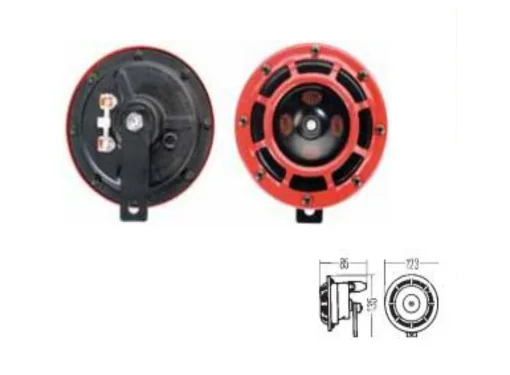

Supertone Horns – High Penetration
- Extremely focused sound characteristics
- Highest penetration force
- Ideal for motorway driving
- Sound pressure level (2 m away): 118 dB(A)
- Red protective grille
| Part No. | Pk. | Description |
|---|---|---|
| 3AG 003 399-801 | 1 | Supertone horn set, 12V, 310/380 Hz |

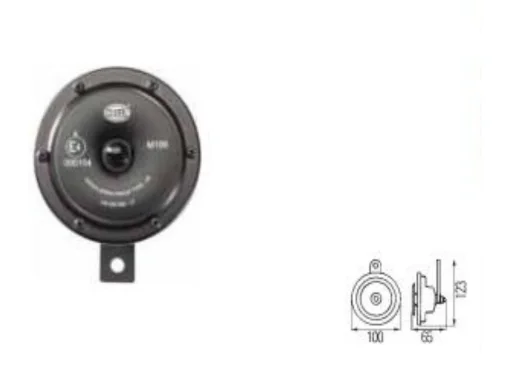

Disc-Type Horns – M 100
- Black body and diaphragm
- Sound pressure level (2 m away): 113 dB(A)
- Power consumption: 42 W
- With 6.3 mm blade terminal contacts, open
- Teflon seal protects against damp
| Part No. | Pk. | Description |
|---|---|---|
| 3AL 922 300-207 | 10 | Disc-type horn, 12V, 335 Hz |
